Weldflex™ Mobile Screens

Weldflex™ Mobile Screens provide flexible, heavy-duty welding protection with customisable configurations. Features safety-compliant curtains, industrial-grade construction, and easy mobility for versatile workshop applications

Home » Products » Weldflex™ Mobile Screens

Customisable sizes to fit specific workshop or site requirements
High-vis Safety Yellow components for enhanced visibility and safety
Foot-operated brakes for stability (especially useful in windy conditions or on sloping floors)
Available in both 2mm strip or 1mm sheet configurations
Angled support feet for easy assembly into bays or enclosures
Industrial strength lockable castors
Can be joined together to create larger welding areas

Weldflex^TM Mobile Screen Construction

Frame Structure:

Heavy-duty galvanised or painted steel frame for maximum durability
Bolt-together design for easy assembly and disassembly

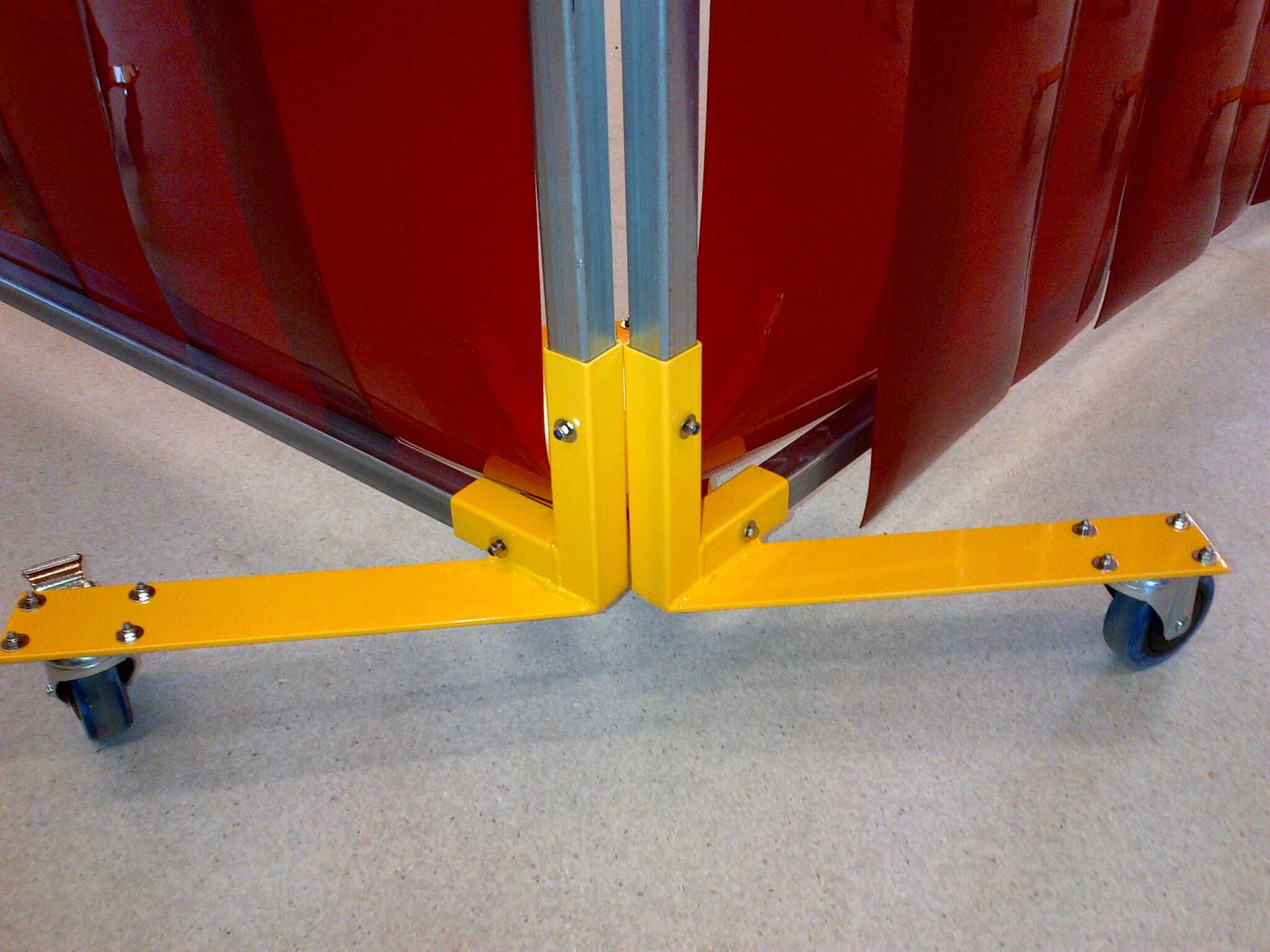

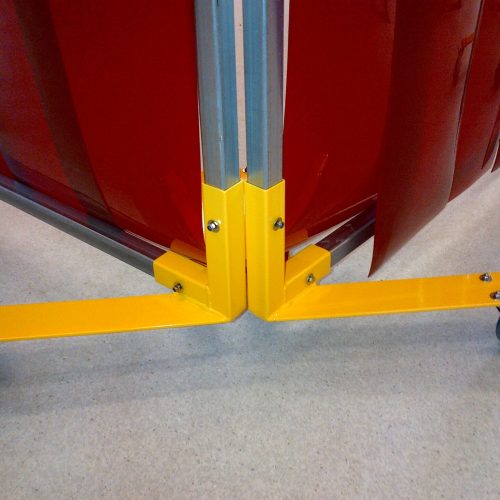

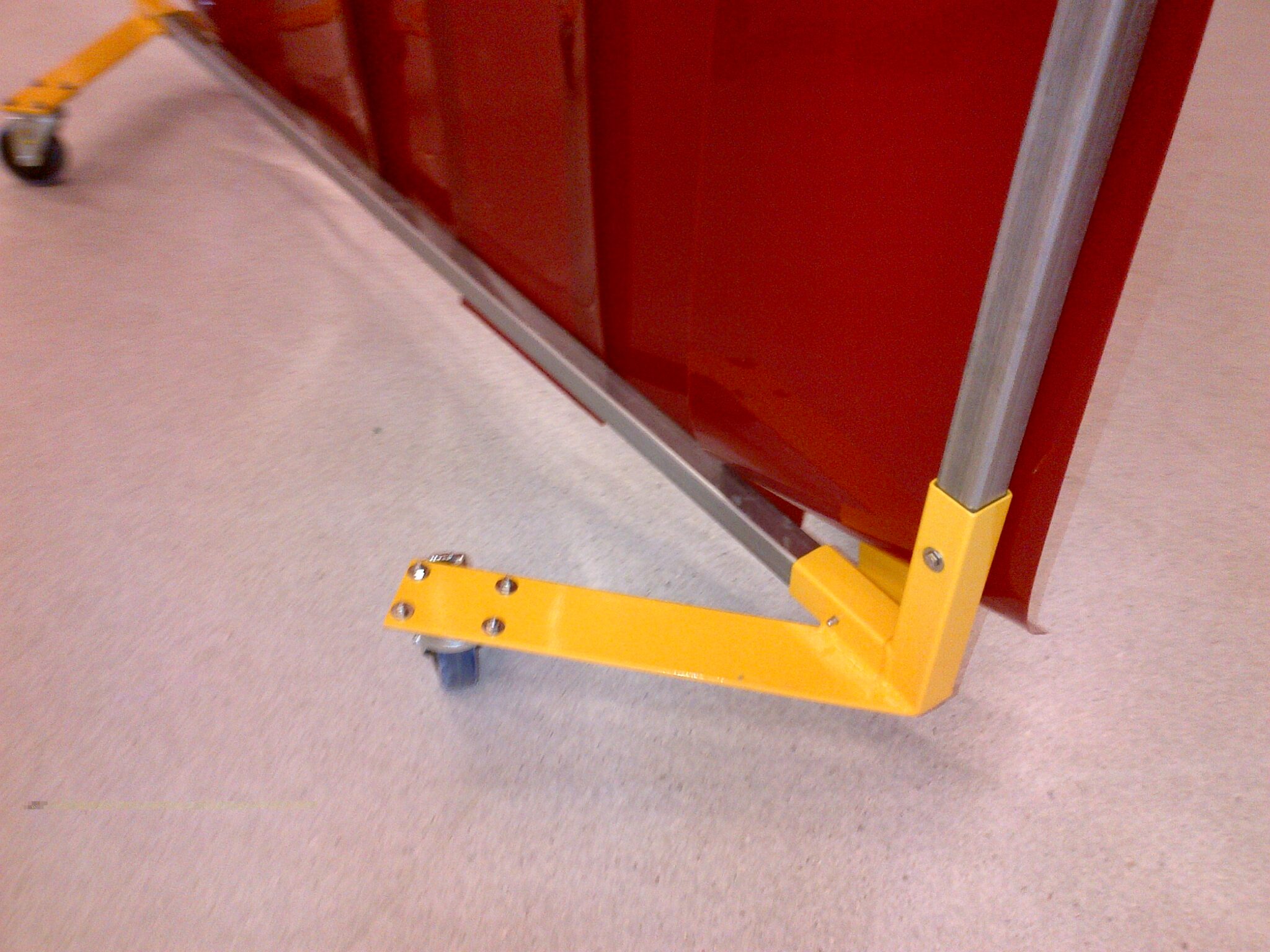

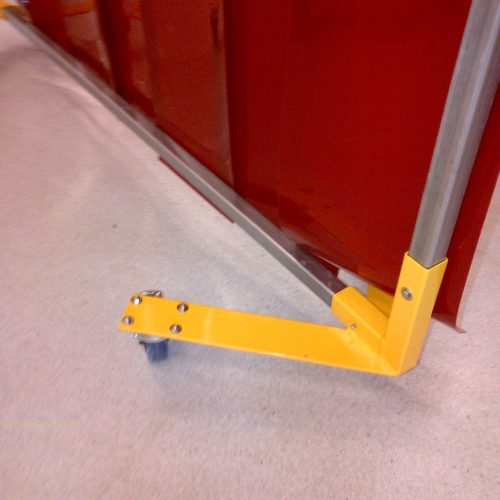

Angled support feet (45° angle) at each end for creating right-angle configurations
Industrial-grade lockable castors for secure positioning
Powder-coated in high-visibility Safety Yellow for enhanced workplace safety

Screen Materials Options:

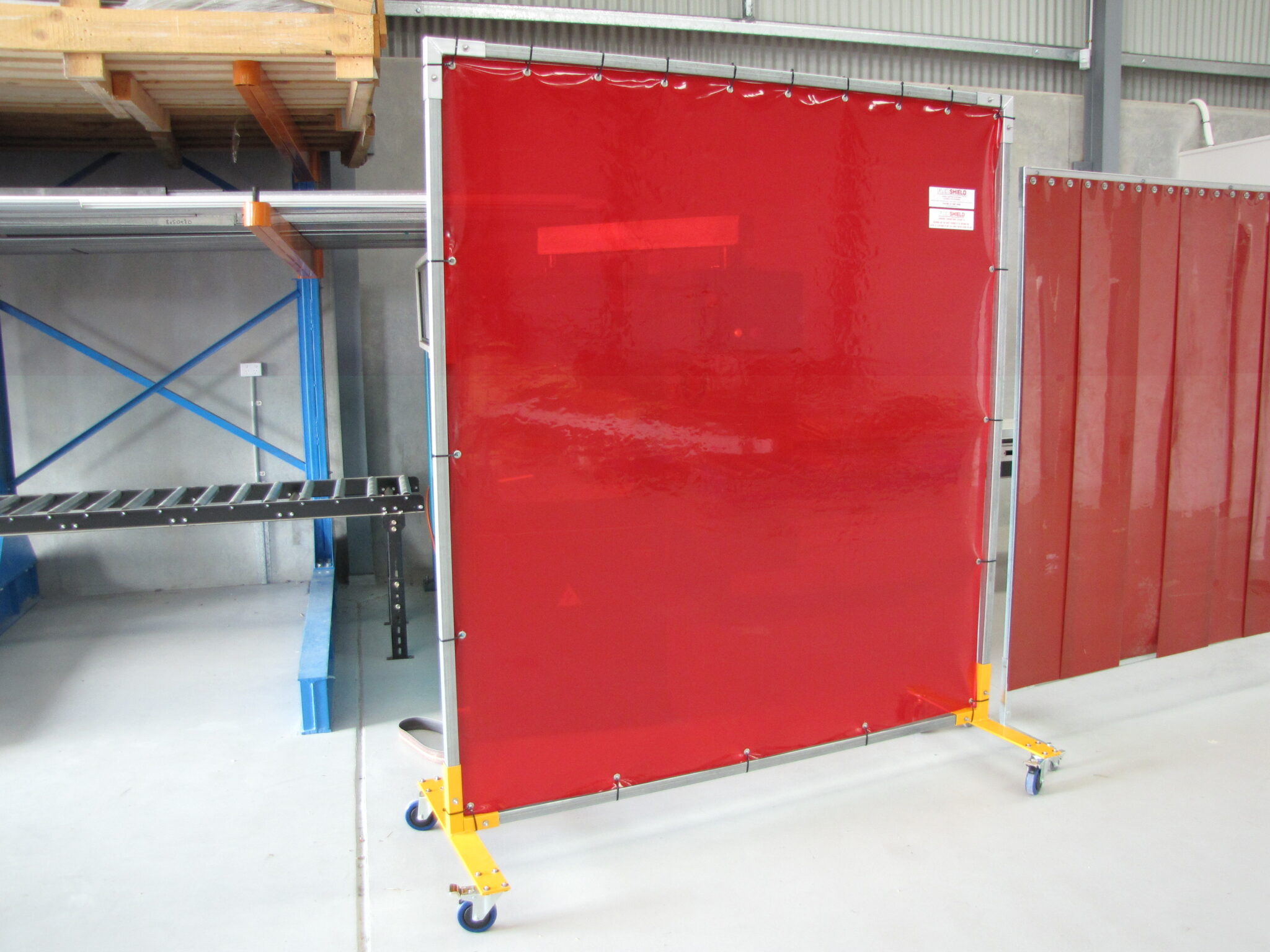

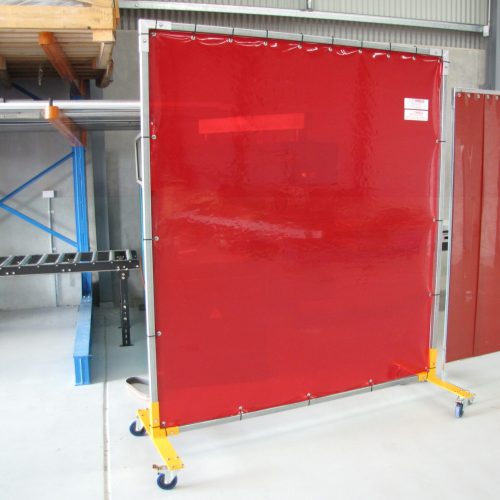

Sheet Style:

1mm thick welding grade material
1830mm standard width
Weight: 2.233kg per lineal metre
Full coverage design
Ideal for complete flash protection

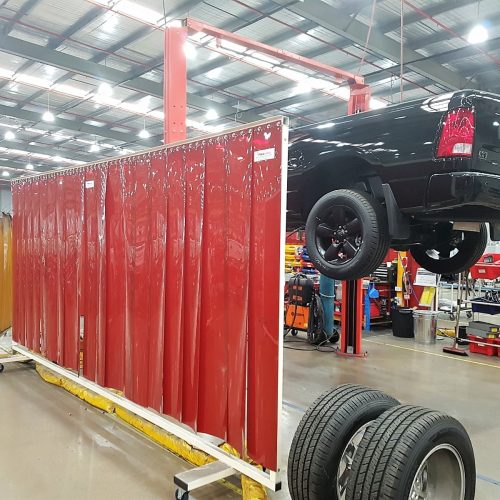

Strip Style:

2mm thick welding grade material
Available in two widths:
- 200mm (Weight: 0.488kg per lineal metre)
- 300mm (Weight: 0.732kg per lineal metre)
Allows for material pass-through while maintaining protection
Superior tear and puncture resistance

Mounting System:

Screens fixed only to the top of the frame
The strategic mounting design prevents damage from floor-level impacts
Allows for easy replacement if needed
Flexible configuration options for creating larger enclosures

Material Properties:

UV-resistant construction
Anti-corrosive materials throughout
Impact-resistant design
Fire-retardant properties
6x thicker than conventional welding screen materials

Customisation Options:

Made-to-measure capabilities
Available as complete installation kits
Professional installation service available
Multiple screens can be joined to create larger welding areas
Optional viewing windows for supervisor inspections

How to Specify a Weldflex^TM Mobile Screen

Size & Configuration Requirements:

Measure your workspace dimensions carefully
Consider:
- Ceiling height restrictions
- Floor space availability
- Access requirements
- Number of welding bays needed
- Traffic flow patterns
Determine if multiple screens need to be joined together
Account for storage space when screens are not in use

Frame Construction Selection:

Choose between:
- Galvanized steel (ideal for corrosive environments)
- Painted steel (with high-visibility Safety Yellow powder coating)
Consider environmental factors:
- Indoor vs outdoor use
- Exposure to chemicals or moisture
- Temperature variations
- Frequency of movement

Curtain Style Selection: Option A: 2mm Strip

Benefits:
- Better air circulation
- Easier material handling
- More flexible movement
Available widths:
- 200mm
- 300mm

Option B: 1mm Sheet

Benefits:
- Complete coverage
- Maximum flash protection
- Enhanced privacy
Standard width: 1830mm

Optional Features:

Angled support feet for:
- Bay configurations
- Corner setups
- Stability enhancement
Foot-operated brakes for:
- Sloping floors
- Windy conditions
- Fixed positioning
Additional options:
- Viewing windows
- Joining mechanisms
- Custom height adjustments
- Special mounting requirements

Site Assessment Requirements:

Provide Flexshield with:
- Floor plans or workspace layouts
- Photos of the installation area
- Details of the surrounding equipment
- Access point information
- Safety requirements
- Specific industry compliance needs

Weldflex^TM Mobile Screen Test Results

Component	Test Standard	Test Parameter	Result/Compliance
Curtain Material (1mm Sheet)	AS/NZS 3957:2014	UV Protection	Compliant
Curtain Material (2mm Strip)	AS/NZS 3957:2014	UV Protection	Compliant
Frame Structure	AS/NZS 4991:2004	Load Bearing Capacity	Compliant
Castors	AS 4114.1:2003	Mobility & Locking Mechanism	Compliant
High-Vis Components	AS 1318:1985	Safety Yellow Color Standard	Compliant
Foot-Operated Brakes	AS 1657:2018	Stability & Safety	Compliant
Welding Grade Material	AS/NZS 3957:2014	Flash Protection	Compliant
Frame Joints	AS 1554.1:2014	Structural Integrity	Compliant

Customisable sizes to fit specific workshop or site requirements
High-vis Safety Yellow components for enhanced visibility and safety
Foot-operated brakes for stability (especially useful in windy conditions or on sloping floors)
Available in both 2mm strip or 1mm sheet configurations
Angled support feet for easy assembly into bays or enclosures
Industrial strength lockable castors
Can be joined together to create larger welding areas

Weldflex^TM Mobile Screen Construction

Frame Structure:

Heavy-duty galvanised or painted steel frame for maximum durability
Bolt-together design for easy assembly and disassembly
Angled support feet (45° angle) at each end for creating right-angle configurations
Industrial-grade lockable castors for secure positioning
Powder-coated in high-visibility Safety Yellow for enhanced workplace safety

Screen Materials Options:

Sheet Style:

1mm thick welding grade material
1830mm standard width
Weight: 2.233kg per lineal metre
Full coverage design
Ideal for complete flash protection

Strip Style:

2mm thick welding grade material
Available in two widths:
- 200mm (Weight: 0.488kg per lineal metre)
- 300mm (Weight: 0.732kg per lineal metre)
Allows for material pass-through while maintaining protection
Superior tear and puncture resistance

Mounting System:

Screens fixed only to the top of the frame
The strategic mounting design prevents damage from floor-level impacts
Allows for easy replacement if needed
Flexible configuration options for creating larger enclosures

Material Properties:

UV-resistant construction
Anti-corrosive materials throughout
Impact-resistant design
Fire-retardant properties
6x thicker than conventional welding screen materials

Customisation Options:

Made-to-measure capabilities
Available as complete installation kits
Professional installation service available
Multiple screens can be joined to create larger welding areas
Optional viewing windows for supervisor inspections

How to Specify a Weldflex^TM Mobile Screen

Size & Configuration Requirements:

Measure your workspace dimensions carefully
Consider:
- Ceiling height restrictions
- Floor space availability
- Access requirements
- Number of welding bays needed
- Traffic flow patterns
Determine if multiple screens need to be joined together
Account for storage space when screens are not in use

Frame Construction Selection:

Choose between:
- Galvanized steel (ideal for corrosive environments)
- Painted steel (with high-visibility Safety Yellow powder coating)
Consider environmental factors:
- Indoor vs outdoor use
- Exposure to chemicals or moisture
- Temperature variations
- Frequency of movement

Curtain Style Selection: Option A: 2mm Strip

Benefits:
- Better air circulation
- Easier material handling
- More flexible movement
Available widths:
- 200mm
- 300mm

Option B: 1mm Sheet

Benefits:
- Complete coverage
- Maximum flash protection
- Enhanced privacy
Standard width: 1830mm

Optional Features:

Angled support feet for:
- Bay configurations
- Corner setups
- Stability enhancement
Foot-operated brakes for:
- Sloping floors
- Windy conditions
- Fixed positioning
Additional options:
- Viewing windows
- Joining mechanisms
- Custom height adjustments
- Special mounting requirements

Site Assessment Requirements:

Provide Flexshield with:
- Floor plans or workspace layouts
- Photos of the installation area
- Details of the surrounding equipment
- Access point information
- Safety requirements
- Specific industry compliance needs

Weldflex^TM Mobile Screen Test Results

Component	Test Standard	Test Parameter	Result/Compliance
Curtain Material (1mm Sheet)	AS/NZS 3957:2014	UV Protection	Compliant
Curtain Material (2mm Strip)	AS/NZS 3957:2014	UV Protection	Compliant
Frame Structure	AS/NZS 4991:2004	Load Bearing Capacity	Compliant
Castors	AS 4114.1:2003	Mobility & Locking Mechanism	Compliant
High-Vis Components	AS 1318:1985	Safety Yellow Color Standard	Compliant
Foot-Operated Brakes	AS 1657:2018	Stability & Safety	Compliant
Welding Grade Material	AS/NZS 3957:2014	Flash Protection	Compliant
Frame Joints	AS 1554.1:2014	Structural Integrity	Compliant

Project Gallery

"Many Thanks for the supply and delivery of our Flexshield Screens. Your service has been impeccable from start to finish. These shields have been a monumental improvement to our welding area, and they will last for many years to come. Please pass on my thanks to the whole team."

Mike Barker | Birdwood High School

We are proud to work with some of Australia’s greatest brands

Project Case Study

JRS Manufacturing Group – Welding Bays

Project: Welding Bays

Industry: Manufacturing

Location: Toowoomba, QLD

Client: JRS Manufacturing

Questions people ask about Weldflex™ Mobile Screens

What materials are Weldflex™ mobile screens made of?

Weldflex™ mobile screens are constructed with heavy-duty galvanised or painted steel for durability and longevity. The curtains are made of 2mm strip or 1mm sheet material, ensuring resistance to punctures and tears.

How easy is it to assemble and disassemble Weldflex™ mobile screens?

Weldflex™ mobile screens feature a bolt-together frame design, making them easy to assemble and disassemble without requiring extensive technical expertise or tools. This allows for quick setup and reconfiguration as needed.

Can Weldflex™ mobile screens be customised to fit specific requirements?

Yes, Weldflex™ mobile screens are customisable in size and configuration to fit various workshop layouts and space constraints, providing educators with flexibility in setting up welding bays or partitions.

Are Weldflex™ mobile screens compliant with industry safety standards?

Yes, Weldflex™ mobile screens comply with AS/NZS 3957:2014 standards for welding flash protection, guaranteeing their effectiveness in containing welding flashes and debris within designated areas.

How do Weldflex™ mobile screens enhance safety in educational environments?

Weldflex™ mobile screens provide a safe and controlled environment for welding activities, ensuring compliance with safety regulations and protecting students and instructors from welding hazards such as UV radiation, sparks, and debris.

What are Weldflex™ mobile screens?

Weldflex™ mobile screens are portable welding safety barriers designed to create enclosed welding bays or partitions. They are customisable to fit various workshop or site requirements. They are equipped with features such as foot-operated brakes for stability and high-vis Safety Yellow components for enhanced visibility.
