Complete acoustic welding bays

Australian-manufactured complete acoustic welding bays designed for Australian education environments, from one welding bay to complete Trade Training Centre workshops.

Home » Education Products » Complete acoustic welding bays

Get the information you need to plan and specify welding bays that fit your workshop. Compare construction options, compatible components and optional inclusions to determine what your project requires. Access technical documentation, applicable test results and a practical specification schedule to support procurement and prepare an accurate quote request. Flexshield can also assist with workshop planning, technical advice and installation requirements.

Designed specifically for Australian education environments.
Create safe, organised and flexible welding workspaces for students and teachers.
Configured from a single welding bay through to complete Trade Training Centre workshops.
Australian-manufactured using compatible Flexshield products from one supplier.
Supply only or supply and installation available across Australia.
Supported by independently NATA-accredited acoustic testing and more than 25 years of manufacturing experience.

Complete acoustic welding bays are designed to create safe, practical learning environments while supporting workshop flexibility, student supervision and day-to-day teaching.

Every installation is configured around the workshop layout, allowing education facilities to create one welding bay or complete multi-bay workshops using compatible Flexshield products. Acoustic performance forms part of the overall design, helping separate welding activities while maintaining practical teaching spaces.

Supporting technical documentation is available to assist architects, builders, education providers and project teams throughout planning and specification.

Welding Bay Walls – Sonic System V50 Acoustic Panel Construction

Pre-finished steel and Rockwool sandwich panel construction
Internal face – 0.6mm perforated steel facing the noise source
External face – 0.8mm solid steel sheet
Internal core – Acoustic-rated Rockwool (70 kg/m³)
Panel edging – 2mm steel channel capping
Standard finish – Dulux Grey Nurse (custom colours available)

Steel Support Framework

35 x 35 x 2 RHS (Rectangular Hollow Section)
Available in Galvabond or powder-coated finish
Engineered for structural integrity and stability

Welding Curtains

Weldflex™ welding sheet curtains or Weldflex™ welding strip curtains
Manufactured from AS3957-complying materials
UV and spark resistant
Easy installation and maintenance
Flexible configuration options

Flooring

FlexWeld welding mats
Non-conductive properties
Anti-fatigue design
Non-slip surface
High visibility yellow borders
Custom sizing available

Optional Integrated Components

Telescopic fume extraction arms
Custom workbenches and welding tables
Gas reticulation
Electrical services
PVC swing doors
Inspection windows for supervision

Every Trade Training Centre is different. Complete acoustic welding bays are configured around the workshop rather than supplied as a fixed package, allowing installations from a single welding bay through to complete Trade Training Centre workshops.

Complete acoustic welding bays are manufactured using products supported by independent testing and recognised quality management standards.

Documentation is available to support specification, procurement and project delivery, including NATA-accredited acoustic testing where applicable, recognised AS/NZS standards where applicable, ISO 9001 Quality Management, ISO 14001 Environmental Management, AS4801 Occupational Health and Safety and supporting technical documentation.

Copy and amend the schedule below to suit your project requirements.

Item	Requirement
Project name
Education facility
Number of Complete acoustic welding bays
Sonic System acoustic modular panels	Yes / No Qty ____
Weldflex™ welding strip curtains	Yes / No Qty ____
Weldflex™ welding sheet curtains	Yes / No Qty ____
Welding tables	Yes / No Qty ____
FlexWeld welding mats	Yes / No Qty ____
Quench tanks	Yes / No Qty ____
Safe welding fume extraction	Yes / No Qty ____
Installation	Supply Only / Supply & Install

Need assistance? Flexshield can provide workshop planning advice, specification documentation and technical support for education projects.

Independent testing supports the performance of products used within Complete acoustic welding bays, providing architects, specifiers, builders and education providers with confidence during specification and project delivery.

Component	Testing Standard	Compliance Requirements	Performance Criteria
Sonic System acoustic panels	AS/NZS 1270 ISO 354 ISO 717.1	Sound transmission loss Fire resistance Structural integrity	NATA-accredited test results Sonic System V50 – NRC 1.00 \| Rw 31 dB Sonic System V225 – NRC 0.80 \| Rw 24 dB
Weldflex™ welding curtains	AS/NZS 3957 EN ISO 25980	UV resistance Fire retardancy Light transmission	Welding flash protection Self-extinguishing properties Material durability
FlexWeld welding floor mats	AS/NZS 4442 AS/NZS 2210.3	Electrical resistance Slip resistance Impact resistance	Non-conductive properties Anti-fatigue rating Load bearing capacity
Support framework	AS/NZS 4100 AS/NZS 1554	Structural integrity Welding standards Coating systems	Load bearing capacity Corrosion resistance Structural certification
Fume extraction	AS/NZS 4114.1 AS 4289	Extraction efficiency Airflow rates Filtration standards	Capture velocity Filter efficiency Noise levels
Work tables / benches	AS 1657 AS/NZS 4442	Load capacity Stability Surface finish	Weight rating Durability Safety compliance

Flexshield operates certified management systems including ISO 9001, ISO 14001 and AS4801. Detailed NATA-accredited test reports, product data sheets and supporting technical documentation are available on request.

Designed specifically for Australian education environments.
Create safe, organised and flexible welding workspaces for students and teachers.
Configured from a single welding bay through to complete Trade Training Centre workshops.
Australian-manufactured using compatible Flexshield products from one supplier.
Supply only or supply and installation available across Australia.
Supported by independently NATA-accredited acoustic testing and more than 25 years of manufacturing experience.

Complete acoustic welding bays are designed to create safe, practical learning environments while supporting workshop flexibility, student supervision and day-to-day teaching.

Supporting technical documentation is available to assist architects, builders, education providers and project teams throughout planning and specification.

Welding Bay Walls – Sonic System V50 Acoustic Panel Construction

Pre-finished steel and Rockwool sandwich panel construction
Internal face – 0.6mm perforated steel facing the noise source
External face – 0.8mm solid steel sheet
Internal core – Acoustic-rated Rockwool (70 kg/m³)
Panel edging – 2mm steel channel capping
Standard finish – Dulux Grey Nurse (custom colours available)

Steel Support Framework

35 x 35 x 2 RHS (Rectangular Hollow Section)
Available in Galvabond or powder-coated finish
Engineered for structural integrity and stability

Welding Curtains

Weldflex™ welding sheet curtains or Weldflex™ welding strip curtains
Manufactured from AS3957-complying materials
UV and spark resistant
Easy installation and maintenance
Flexible configuration options

Flooring

FlexWeld welding mats
Non-conductive properties
Anti-fatigue design
Non-slip surface
High visibility yellow borders
Custom sizing available

Optional Integrated Components

Telescopic fume extraction arms
Custom workbenches and welding tables
Gas reticulation
Electrical services
PVC swing doors
Inspection windows for supervision

Complete acoustic welding bays are manufactured using products supported by independent testing and recognised quality management standards.

Copy and amend the schedule below to suit your project requirements.

Item	Requirement
Project name
Education facility
Number of Complete acoustic welding bays
Sonic System acoustic modular panels	Yes / No Qty ____
Weldflex™ welding strip curtains	Yes / No Qty ____
Weldflex™ welding sheet curtains	Yes / No Qty ____
Welding tables	Yes / No Qty ____
FlexWeld welding mats	Yes / No Qty ____
Quench tanks	Yes / No Qty ____
Safe welding fume extraction	Yes / No Qty ____
Installation	Supply Only / Supply & Install

Need assistance? Flexshield can provide workshop planning advice, specification documentation and technical support for education projects.

Component	Testing Standard	Compliance Requirements	Performance Criteria
Sonic System acoustic panels	AS/NZS 1270 ISO 354 ISO 717.1	Sound transmission loss Fire resistance Structural integrity	NATA-accredited test results Sonic System V50 – NRC 1.00 \| Rw 31 dB Sonic System V225 – NRC 0.80 \| Rw 24 dB
Weldflex™ welding curtains	AS/NZS 3957 EN ISO 25980	UV resistance Fire retardancy Light transmission	Welding flash protection Self-extinguishing properties Material durability
FlexWeld welding floor mats	AS/NZS 4442 AS/NZS 2210.3	Electrical resistance Slip resistance Impact resistance	Non-conductive properties Anti-fatigue rating Load bearing capacity
Support framework	AS/NZS 4100 AS/NZS 1554	Structural integrity Welding standards Coating systems	Load bearing capacity Corrosion resistance Structural certification
Fume extraction	AS/NZS 4114.1 AS 4289	Extraction efficiency Airflow rates Filtration standards	Capture velocity Filter efficiency Noise levels
Work tables / benches	AS 1657 AS/NZS 4442	Load capacity Stability Surface finish	Weight rating Durability Safety compliance

Project Gallery

We are proud to work with some of Australia’s greatest brands

Project Case Study

A robust acoustic solution to keep students and educators safe

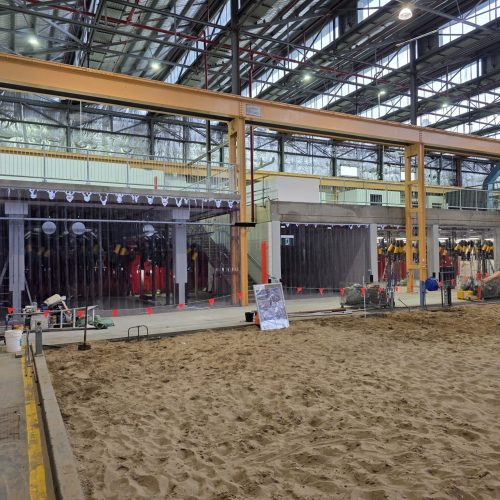

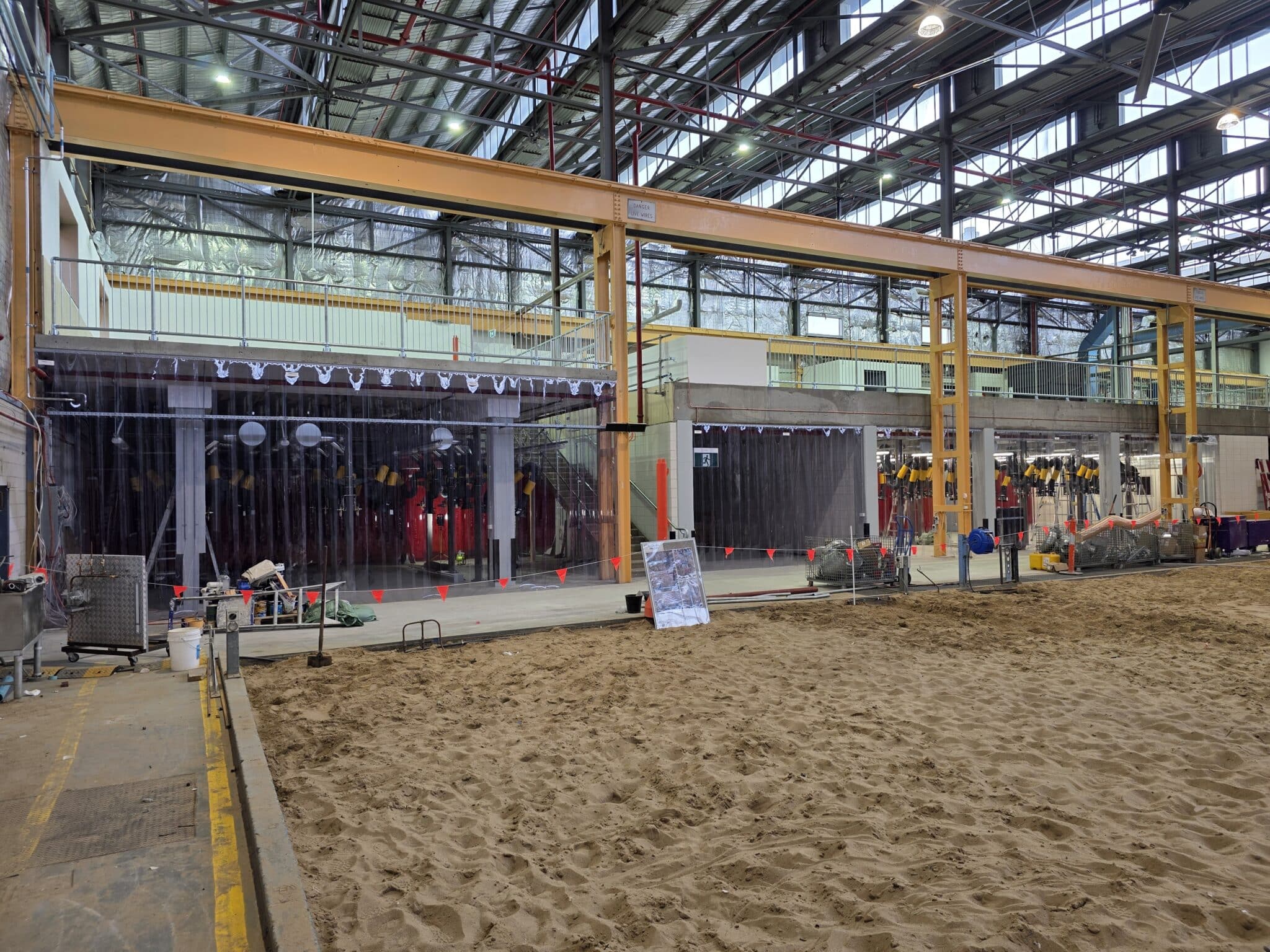

Project: Sonic Acoustic welding and grinding bays for TAFE training facilities

Industry: Construction/Education

Location: Chadston,VIC

Client: SJ Higgins Group Pty Ltd

Trade Training Centre Fitted out with 28 Acoustic Welding Bays

Project: Bundamba TAFE

Industry: Manufacturing

Location: Queensland

Client: QBuild

Questions people ask about Complete acoustic welding bays

How are Complete acoustic welding bays configured for different workshop layouts?

Complete acoustic welding bays are configured around the available workshop space, the number of welding stations and the project’s operational requirements. Flexshield can assist with workshop planning and provide configurations that incorporate compatible components, rather than supplying a fixed package.

What components can be included in Complete acoustic welding bays?

Complete acoustic welding bays can incorporate Sonic System V50 Acoustic Panel walls, steel support frameworks, Weldflex™ Concertina Sheet Curtains or Weldflex™ Strip Curtains, and FlexWeld Welding Mats. Optional components include telescopic fume extraction arms, custom workbenches and welding tables, gas reticulation, electrical services, PVC swing doors and inspection windows. The final arrangement depends on the workshop layout and project requirements.

How do Weldflex™ curtains support welding activities and teacher supervision?

Weldflex™ Concertina Sheet Curtains and Weldflex™ Strip Curtains are manufactured from AS3957-complying materials and are UV and spark resistant. They help separate welding activities while allowing flexible access to designated work areas. Curtain selection and configuration should be considered alongside welding flash protection, visibility and supervision requirements. Inspection windows can also be incorporated where required.

What technical documentation is available for specification?

Flexshield can provide product data sheets, supporting technical documentation and independently NATA-accredited acoustic test reports where applicable. Documentation is available to assist architects, builders, education providers and project teams with planning, specification and procurement. Applicable testing and compliance requirements should be confirmed for the components selected for each project.

Can Flexshield assist with planning and installation?

Yes. Flexshield provides workshop planning advice, specification documentation and technical support for education projects. Complete acoustic welding bays are available as supply only or supply and installation throughout Australia. Project teams can use the specification schedule to identify bay quantities, curtain requirements, optional components and installation preferences before requesting a quote.
