Sonic System acoustic modular panel-V100 Datasheet

The Sonic System acoustic modular panel V100 combines noise absorption and noise reduction in a robust 100 mm panel for industrial applications.

Designed for modular installation, the Sonic System acoustic modular panel V100 is suited to industrial acoustic walls, acoustic enclosures, wall linings and external acoustic noise walls where higher levels of noise reduction are required.

The datasheet provides acoustic performance data, fire-testing information, allowable loading pressures, and detailed product specifications.

Product information

• NRC 1.10
• Rw (C;Ctr) 37 (-2;-7)
• FRL -/120/- to AS 1530.4-2014
• Reaction to fire indices 0/0/0/1 to AS/NZS 1530.3
• Non-combustible Rockwool core to AS 1530.1
• 100mm panel thickness
• 450mm panel width
• Custom lengths available to suit project requirements

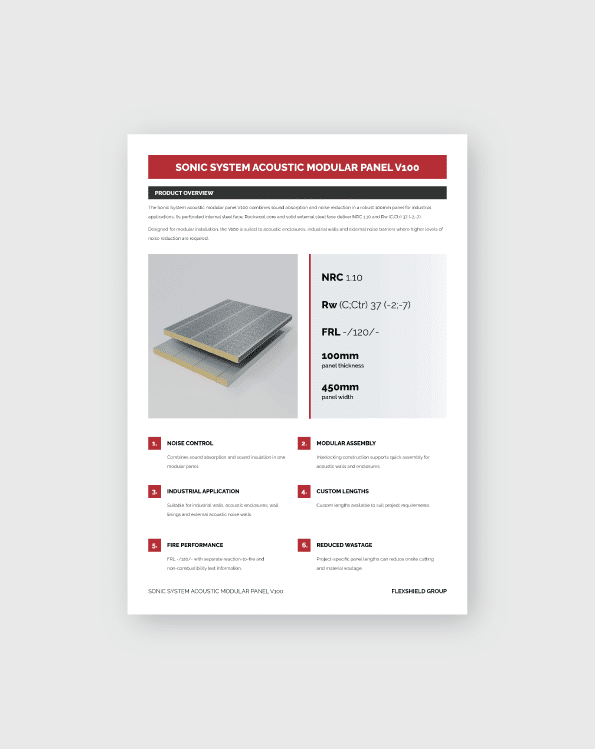

Download the Sonic System acoustic modular panel V100 datasheet for detailed product specifications and test information.
